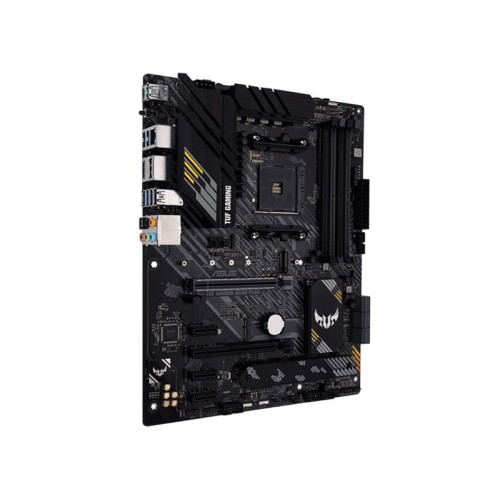

ASUS TUF GAMING B550-PLUS
| Tip procesora | Čipset AMD B550 Podnožje/Socket AMD AM4 |
| Format ploče | Format ATX |
| Memorija | Tip memorije DDR4 Max. količina memorije 128GB Radni takt memorije 4600 (O.C.)4400 (O.C.)4266 (O.C.)4133 (O.C.)4000 (O.C.)3866 (O.C.)3733 (O.C.)3600 (O.C.)3466 (O.C.)3333 (O.C.)320030002800266624002133 |
| Slotovi za proširenje | 1 x PCIe 4.0 x16 (x16 mode) 1 x PCIe 3.0 x16 (x4 mode) 3 x PCIe 3.0 x1 *1 I/O konektori 1 x DisplayPort 1 x HDMI |
| Zvučna kartica | HD audio |
| Ostalo | Grafička podrška Podrška AMD Ryzen procesora sa Vega grafičkim čipom. Multi-GPU Support - AMD 2-Way CrossFireX Technology 1 x LAN (2.5G) port(s) Realtek RTL8125B 2.5Gb Ethernet 2 x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C) 4 x USB 3.2 Gen 1 (blue) Type-A 2 x USB 2.0 1 x Optical S/PDIF out 5 x Audio jack(s) 1 x BIOS FlashBack Button(s) Interni I/O konektori 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 2 x Aura RGB Strip Headers 1 x Addressable Gen 2 header(s) 1 x USB 3.2 Gen 1, (up to 5Gbps) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 6 x SATA 6Gb/s connector(s) 1 x M.2 Socket 3 with : M key, type 2242/2260/2280/22110 (SATA & PCIe 4.0 x4 mode) 1 x M.2 Socket 3 with : M key,type 2242/2260/2280/22110 (SATA & PCIE 3.0 x 4 mode) 1 x M.2 with E key for Wi-Fi module 1 x SPI TPM header 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header |
| Garancija | 36 meseci |
